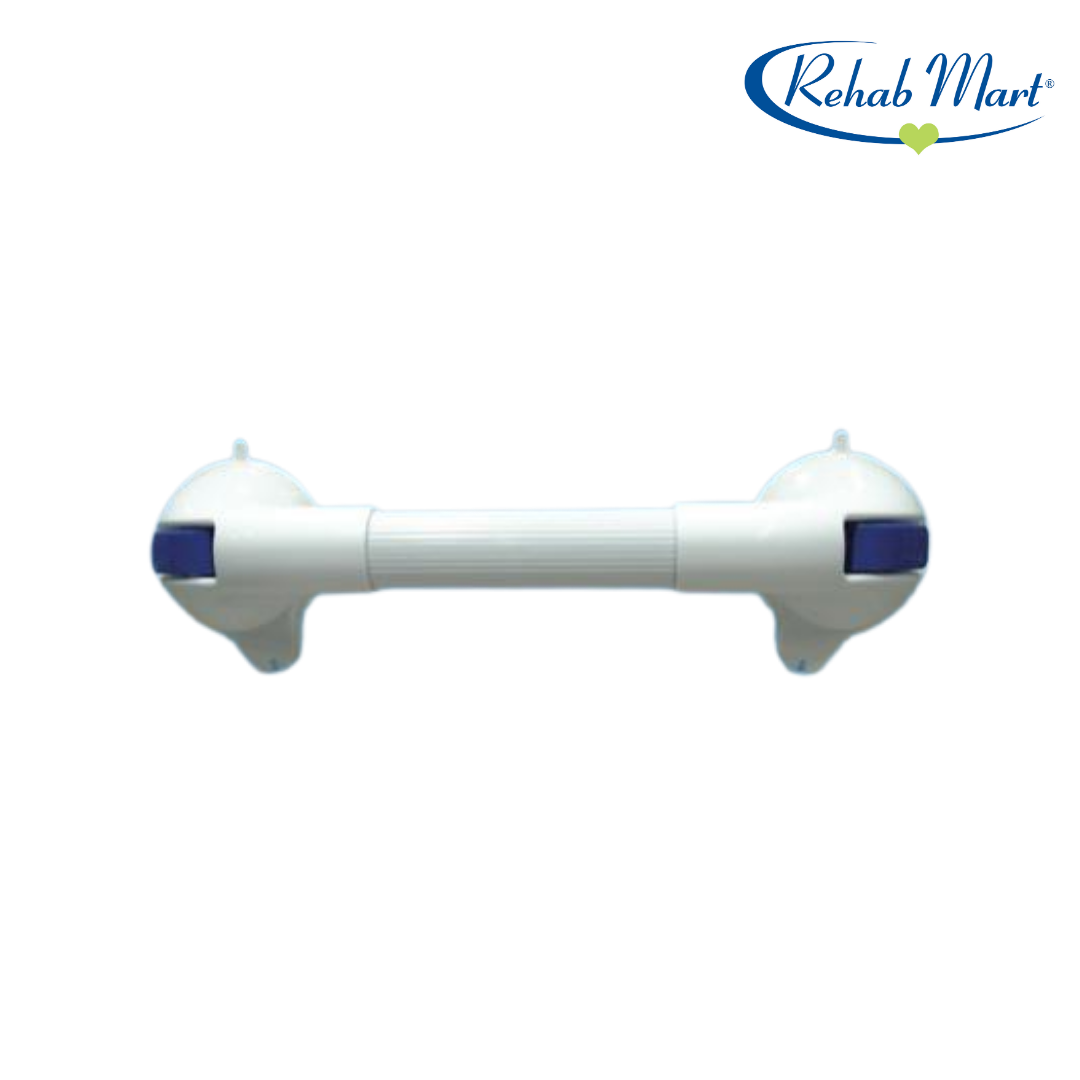

Grab Bar Suction VL11613

With red / green contact indicators

MATERIAL SPECIFICATION

• ABS Flanges
• PVC Tubing
• Stainless steel screws & Inside springs
• POM Suction cup

Product Feature

• Flip-up easy release tabs for easy installation and removal
• Designed as a balancing assist, not for body weight

Sizes available

Length: 30.45cm / 12" - VL11613/12
Length: 60.96cm / 24" - VL11613/24

Instructions for Use

1. Clean the tile surface where you wish to attach the grab bar.

2. Press grab bar to the cleaned area. Be sure the tile surface is thoroughly dry and rubber discs are completely touching the surface. The rubber discs should not be on or touching any grout lines or tile joints.

3. Push the latch on each side of the grab bar into the lock position to activate suction. When suction is activated you will see a green contact indicator. If suction is not activated the indicator will be RED. The grab bar is correctly activated only when contact indicator is GREEN.

** CAUTION: The suction grab bar IS TO BE USED FOR ASSISTING BODY BALANCE ONLY., AND NOT FOR BODY WEIGHT LEVERAGE. BODY WEIGHT IS NOT TO BE APPLIED TO PRODUCT. (IF DEVICE IS REQUIRED TO BEAR THE BODY WEIGHT, OR IS USED FOR LEVERAGE, IT IS RECOMMENDED THAT A TRADITIONAL, PERMANENTLY MOUNTED GRAB BAR BE INSTALLED.) CHECK ATTACHMENT BEFORE EACH USE AND REATTACH IF LOOSE. THE CONSUMER IS RESPONSIBLE FOR THE CORRECT INSTALLATION.

Instruction Sheet
