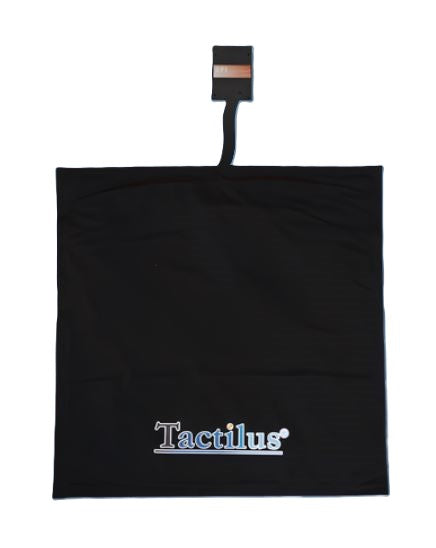

TACTILUS Seat Pressure Mapping System

The Tactilus seat sensor is the most scientifically sophisticated, yet user-friendly product in the market for evaluating pressure distribution and magnitude between
a person and a seating surface. Chair design, wheelchair fitting, ulcer prevention, equestrian and cycling saddle fitting are common applications.

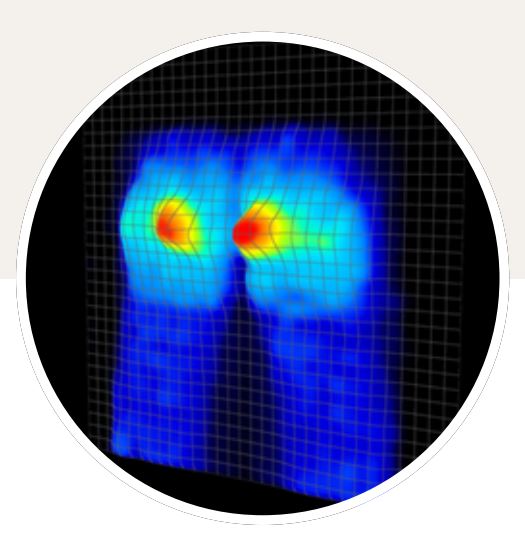

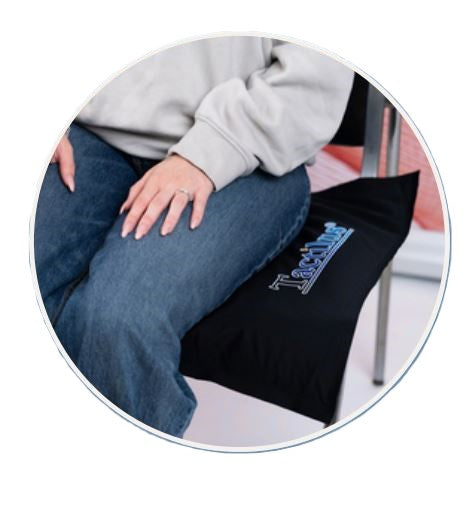

The Tactilus® seat sensor delivers real-time surface pressure distribution between a person and their seating surface.
Bringing human factors engineering to a new level, Tactilus® seat sensor is capable of characterizing pressure magnitude of the seat surface, back and head rest simultaneously.
Tactilus® seat sensor then assimilates the data collected into our powerful Windows® based software providing you with everything from pressure maps to detailed statistical analysis.
In the design of seating surfaces, position, density and conformity of materials is critical.
Tactilus® seat sensor not only significantly reduces the number of test iterations required, but is a revolutionary design aid towards the quest for ergonomic fit.

Technology: Piezoresistive
Pressure Range: 0 - 5 PSI (0 - 0.35 kg/cm2)
Grid Size: 32 x 32
Sensing Points: 1,024
Total Sensing Area: 18.3” x 18.3” (46.5 x 46.5 cm)
Scan Speed: USB 50 hertz (Bluetooth)
Spatial Resolution: From .59 in. (1.5 cm) and finer
Thickness: .098 in. (2.5 mm)
Accuracy: ± 10%
Transmission Range: 66’ (20 meters) Bluetooth
Transmission Mode: USB cable or Bluetooth
