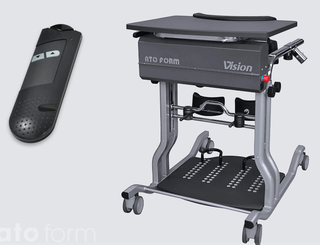

Ato Form Vision Standing Frame

The standing frame VISION enables you having an active part in your surroundings, taking actively part in prophylactic acts and the therapy of pathological patterns, also to ensure the present quality of life.

Vision offers an entry at almost floor level and makes rising from a wheelchair easier. The user can stand up without any effort of his own.

VISION is fitted, as standard, with 4 safety wheels, for comfortable change of location.

Indications:

• cerebral paresis
• paraplegia
• quadriplegia
• multiple sclerosis
• and others

Scope of Delivery:

• wireless remote control
• easy to use height adjustment of the therapy table by means of gas springs
• depth and tilt adjustable therapy table
• adjustable depth, height, breadth and angular position of knee supports
• width and depth adjustable heel supports
• 4 safety wheels

Optional Accessories:

• Various belt systems
• Posterior support
• Back support with headrest
• Foot fixation, velcro®
• Forefoot fixation

Technical Details:

Standing frame Vision® Junior Vision®
Article number VSJ-1000 VS-1100
Footplate ↔ Table cm 87.0 – 100.0 93.0 – 120.0
Footplate ↔ Knee support cm 30.0 – 50.0 38.0 – 56.0
Height of handrails (from footplate) cm 69.0 – 90.0 80.0 – 104.0
Floor ↔ upper edge footplate cm 8.0 8.0
Chassis length cm 93.0 103.0
Overall length cm 99.0 110.0
Outer frame width cm 68.0 78.0
Inner frame width cm 51.5 61.5
Therapy table (breadth x depth) cm 65.0 x 60.0 75.0 x 60.0
Depth adjustment table cm 16.0 16.0
Tilt adjustment table Degrees +/- 15° +/- 15°
Product weight kg 58.0 44.0
Maximum capacity kg 150.0 150.0
Power supply V 230 230
IP Protection 21 21
