Fall Prevention Alarm FLOOR System SET

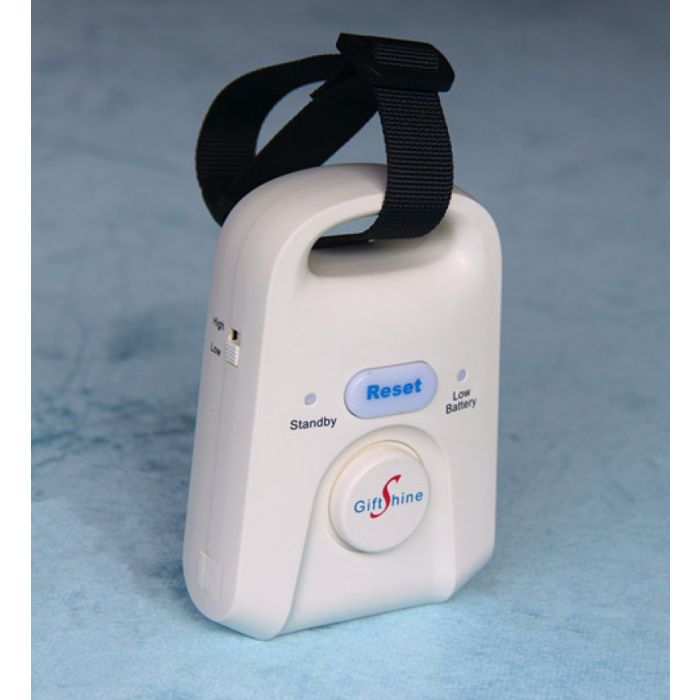

1. Front:
1) Reset Button

2. Side:
1) Volume Switch: High-Low
2) Tone Switch: Music-Alarm

3. Bottom:
1) Sensor Mat
2) Cable Relief

4. LED
1) Standby, Green Light
2) Low Battery, Yellow Light
3) Alarm Ring, Red Light

To setup your alarm monitor:
1. Set the desired alarm and tone setting on both sides.

2. Attach the monitor to the desired location using the straps.

3. Plug floor mat into the alarm monitor.

4. Position the floor mat on the floor, next to the bed, or in front of a doorway.

5. Step on the floor mat. The alarm will sound. Press the Reset button to silence
and reset the monitor.

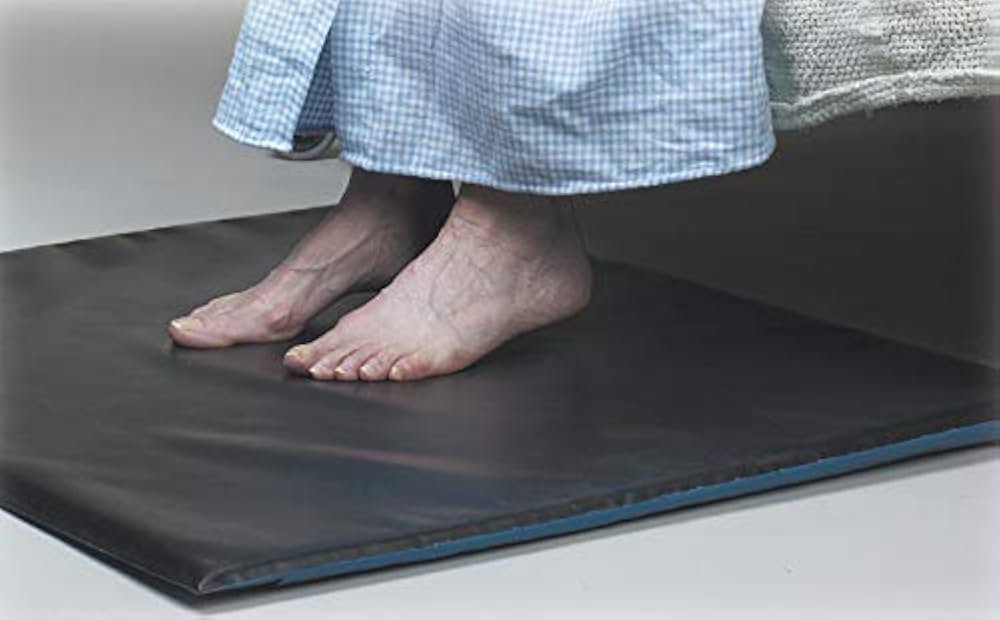

Standard Floor Sensor Mat

Dimensions: 20x30 inches

Parts:
1. Black Vinyl
2. Carbon PCB
3. Sponge
4. Wire Length: 2.51M
5. Connector: RJ11 plug

Notice
1. Important: It is recommended that sensor mat alarms are inspected for
damage and tested prior to each use in order to ensure the safety of the
resident. This is not a lifesaving device but an aid to assist in the care of a
resident / patient.

2. When alarm is in the Standby condition, the front green LED light will flash every
3 seconds. When the battery is low, the front yellow LED light will flash every 3
seconds.
