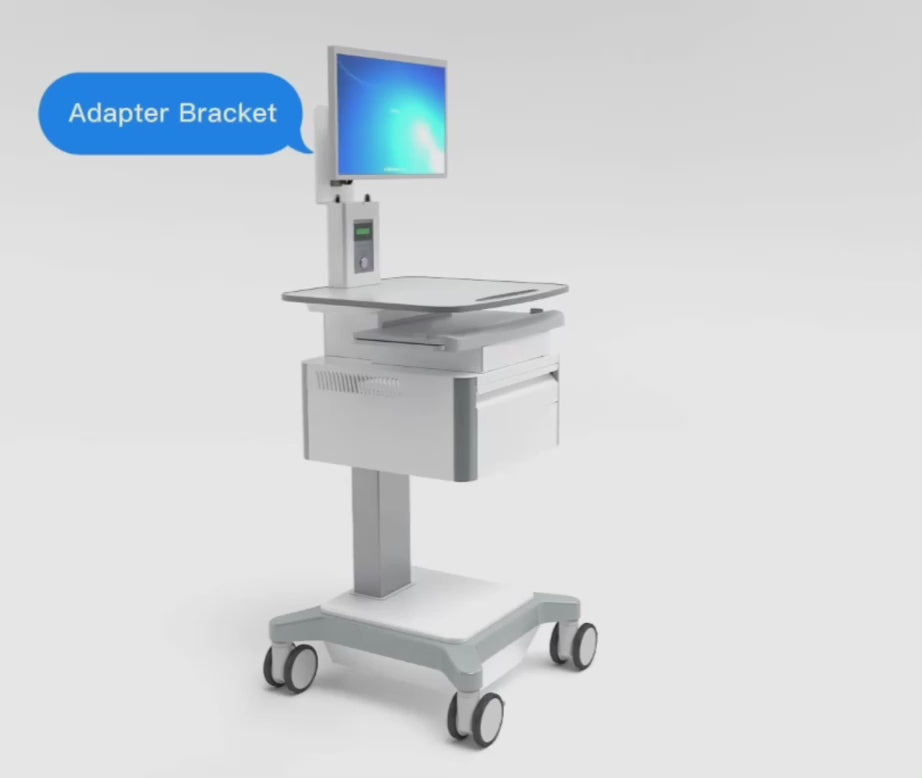

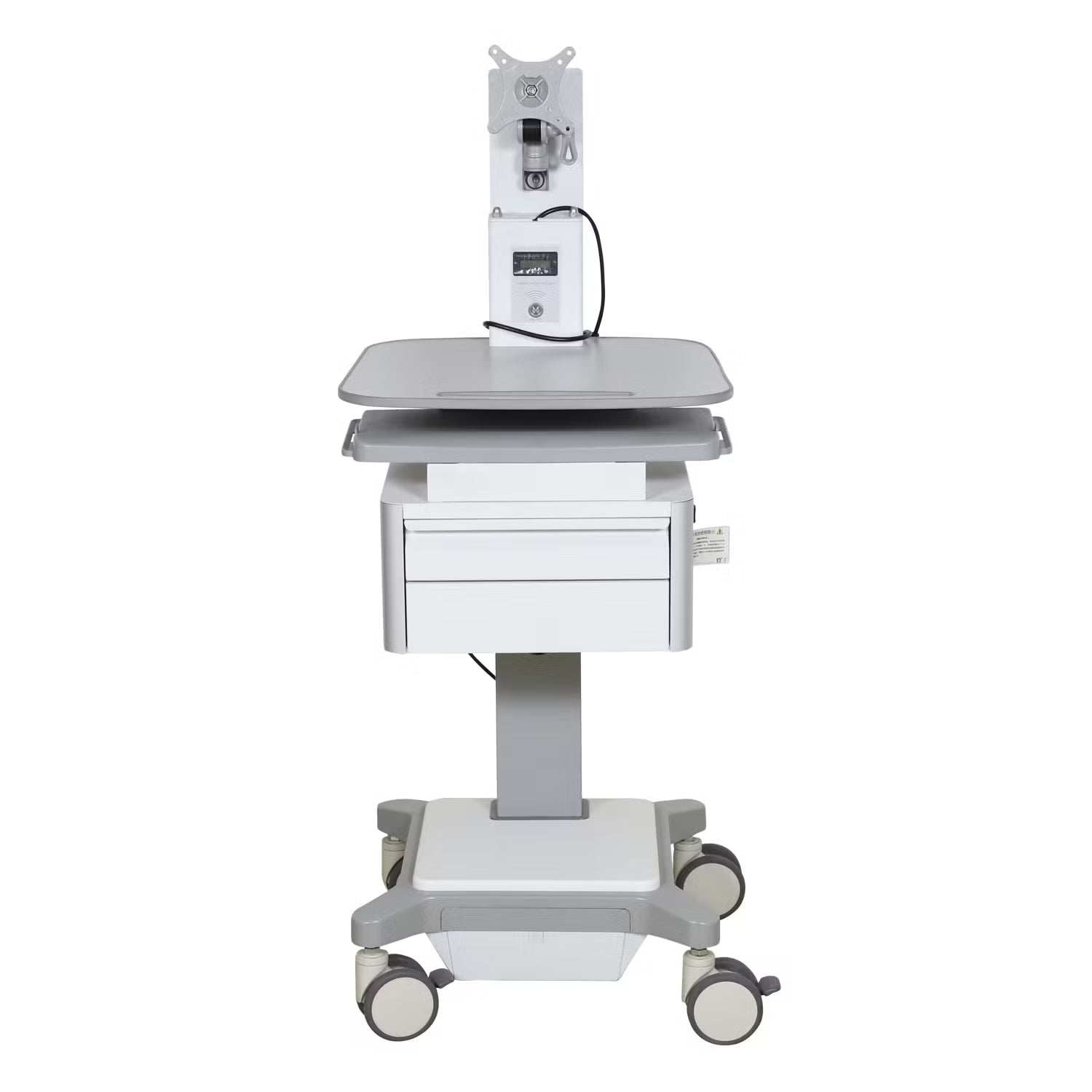

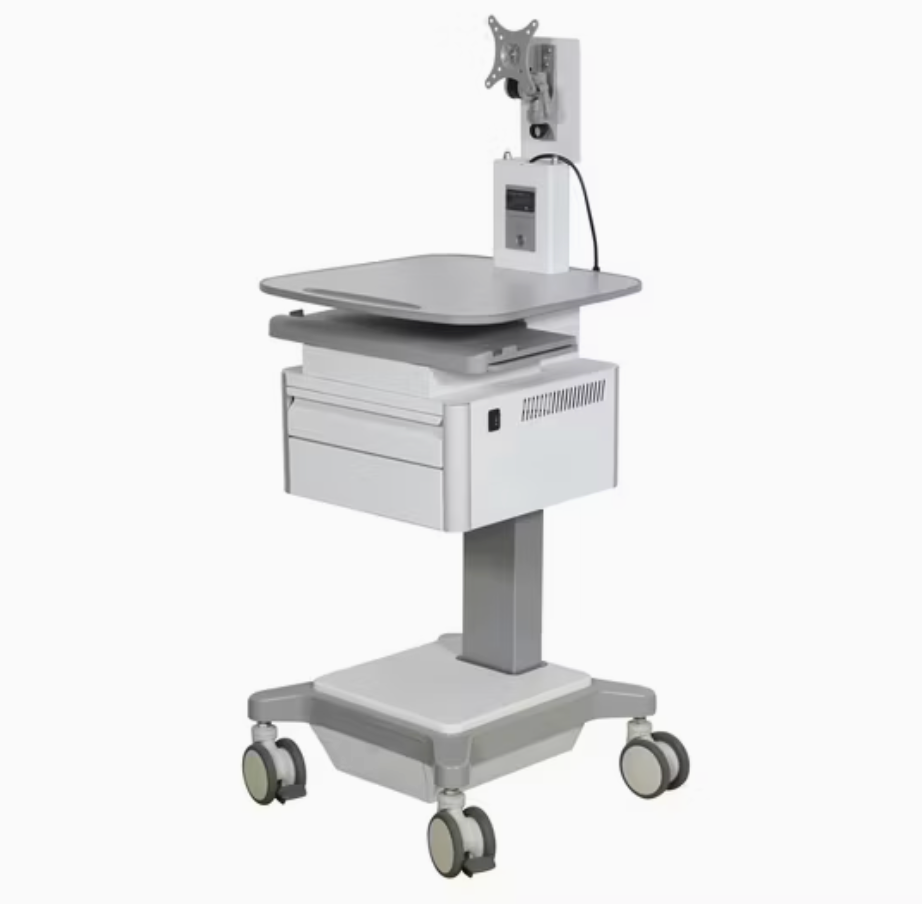

Mobile WorkStation Powered & Manual

Features & Specifications

1. Dimension: 495 x 500 x 1390-1640mm
2. Height adjustment by gas spring or electric motor (optional)
3. 4 dia 100mm noise free castors with brake
4. Keyboard and mouse holder are installed on an extendable table
5. Table surface is made of HPL, corrosion resistance and abrasion resistance
6. It is adopted all-in-one computer
Material: Pillar: Aluminium alloy, Base: Rolled steel and ABS modular

Battery System, Optional (Battery. Charger, Converter) Specifications

• Lithium iron phosphate battery group(60Ah*1 ), Inverter, Charger Lithium iron phosphate.
• Battery group 60Ah

• Reactive Power Converter Dual(Room ElectricallySwitchable)

• Switch Red Wave Power Output Switch

• Rated Output Power 300W

• Rated Input Voltage 90V-120V/220v-240v/90-240AC

• Rated Input Frequency 50Hz-60Hz

• Battery Group OperatingVoltage 12V-14.6V

• Output Voltage 220V±3%/110V±3%

• Output Frequency 50Hz-60Hz

• Charging Time Not more than 7 hours

• Running Time 12-15 hours (up to the power consumption load)

• Max Discharge Current 60A

• Charging Current 8-10A

• Protection Function Over-temperature, Overload, High and low voltage, Output. Short Circuit, Overcharge, Over-discharge-protection

• Electromagnetic CompatibilityRequirementsMeet the IEC62133, Working.
• Relative Humidity0%-95% (Not including the Water Drop)

• Noise ≤65dB

• Battery Certification CE Certification

• Power Display LED Screen/ Ten Bars Indication/Voltage Indication

Available in

JDECF312 Manual height adjustment, by gas spring

JDECF311 Powered height adjustment
