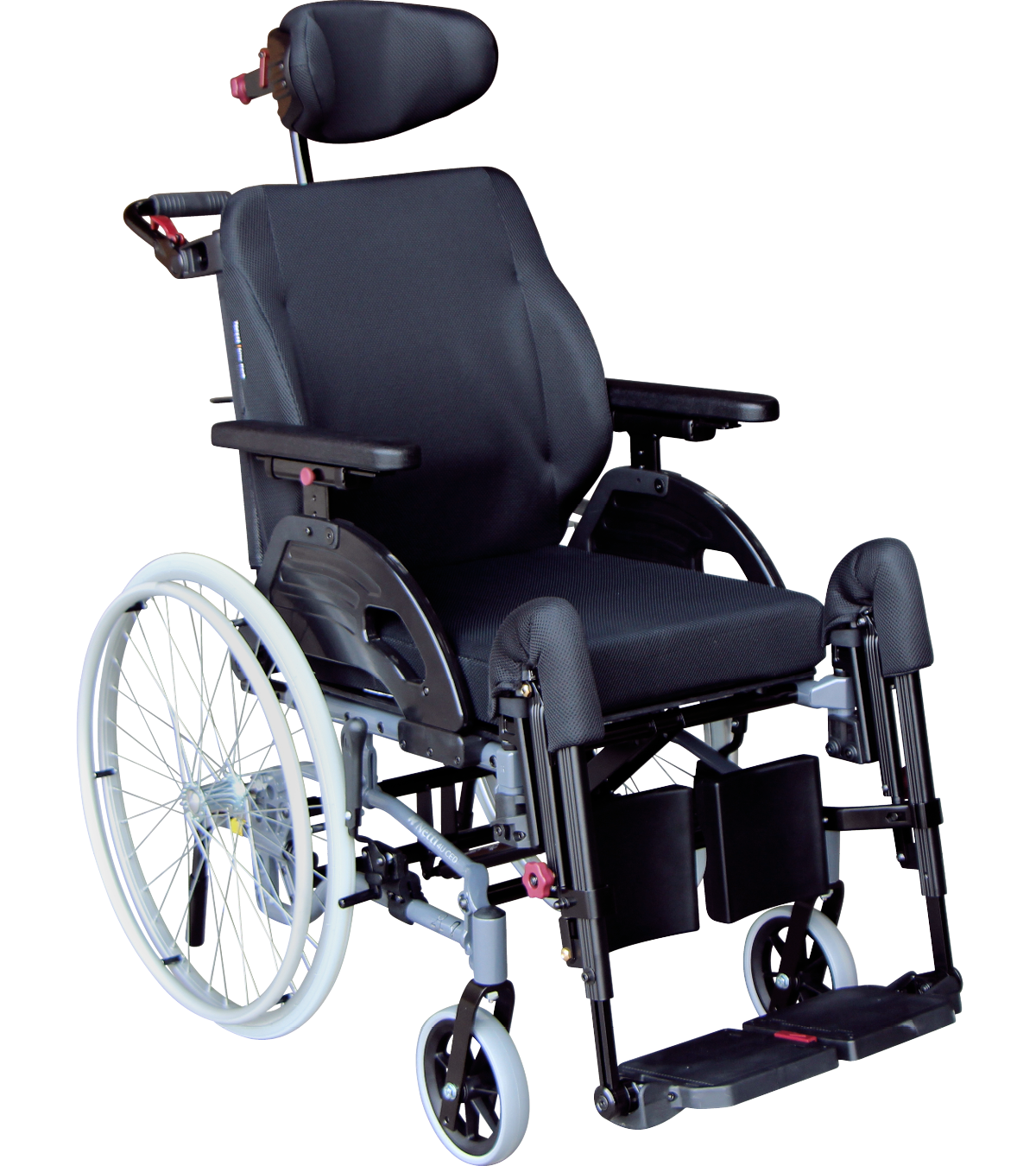

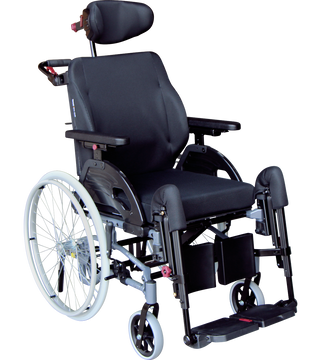

NETTI 4U CED COMFORT Tilt-and-Recline PushChair
Why choose this chair?
Dynamic seating options
Involuntary movements often cause several challenges for wheelchair users and attendants for example sliding and thus often need of repositioning.
This can be accommodated by including dynamic seating solutions. For the Netti 4U CED the following dynamic options are available:
Dynamic head support
Dynamic back support
Dynamic leg support
If the movement patterns include pelvic movements, we recommend a complete Netti Dynamic System including a dynamic seat unit. For this purpose, we offer the Netti Dynamic CED.
Clinical tests show that dynamic options increase the user’s quality of life giving him the opportunity to spend longer time in the chair in a good seating position thus enabling him to take part in every day life.
By allowing the chair to adapt to the user’s movement, the wear of the chair is also reduced.
Read more about the choice of gas spring strength.
Many leg support options
A good positioning of the feet is the first step in creating an upright and stable seating position. And even head control is influenced by the leg positioning. Therefor many leg support options are important if you want to create the best possible seating situation allowing the user to socialize and improve respiration.
Netti 4U CED with its many leg support options, is a good choice if you have users with challenges like:
Pointed foot
Contractions
Restless legs
Extra need of support
Involuntary movements
Amputation
Asymmetries
54 mm seat width flexibility
Seat width reduction (2x15 mm) and seat with expansion (2x 12 mm) give room for growth and make the Netti 4U CED economical in use. These options can also be used to create optimum stability and position.
Combined with the flexibility in seat depth, this makes Netti 4U CED suitable for users of many sizes with functional seat widths of 320 mm to 500 mm.
For larger seat widths, we offer Netti 4U CED XL and Netti III HD and Netti III XHD.
Seat depth from 375-500 mm
Netti 4U CED offers both short and long seat depth. This makes it suitable for e.g. tall and skinny users.
Equipped with comfort pads, it can have a seat width as low as 320 mm, and still have a seat depth up to 500 mm. The seat depth can be adjusted by 75 mm without changing the components.
Adaptable for asymmetries
Netti 4U CED offers the most options to compensate for different asymmetries.
Hip asymmetries can be accommodated through different adjustment of the extension pieces offering a stable fundament.
Curved back shape can be supported through the Velcro back with 6 individually adjustable straps as well as the possibility to position the back cushion according to the user’s back shape.
Total width only +180 mm
Netti 4Us are the most narrow and lightweight wheelchairs on the market.
Total seat width of the wheelchair
Seat width +180 mm with standard wheels
Seat width +195 mm with drum brake wheels
Seat width +170 mm with 16”/12,5” wheels
The ergonomic push bow also makes the wheelchair ideal for tight indoor spaces.
Who will benefit from this wheelchair?
User group Netti Campus
The Netti 4U CED is ideal for long-term sitting (8+ hours per day). It will fit both young and geriatric users of all sizes. The chair works well for users being transferred by hoist or to the side.
For users with specific challenges like e.g.
Hip rotation or pelvic rotation
Asymmetries like scoliosis
Kyphosis
Users with neurological disabilities like spasticity and restlessness
For users needing specific accessories like e.g.
Medical device
Special leg support solutions
Firm aluminium back
Dynamic components
SPECIFICATIONS
Seat width: 350, 400, 430, 450, 500 mm
Optional seat width flexibility: 2x -15/+ 2x +12 mm
Seat depth: 425 - 500 (375 - 450) mm
Back height possibilities range: 500 - 600 mm
Seat height range measured to seatplate: 440 - 500 mm
Weight of wheelchair without cushions: 29 kg
Max. load: 160 kg
Max. load for car transport: 160 kg
Tilt angle: -5° - +20°
Recline angle: 92° - 137°
Leg support length with standard leg support: 320 - 680 mm
Width added to seat width with standard wheels: +180 mm / DB: +195 mm / 12+16'' = +170 mm mm
Total length with standard leg supports: 1020 mm
Arm support height (from seatplate to armpad): 265 - 355 mm
Allowed as seat in a car
